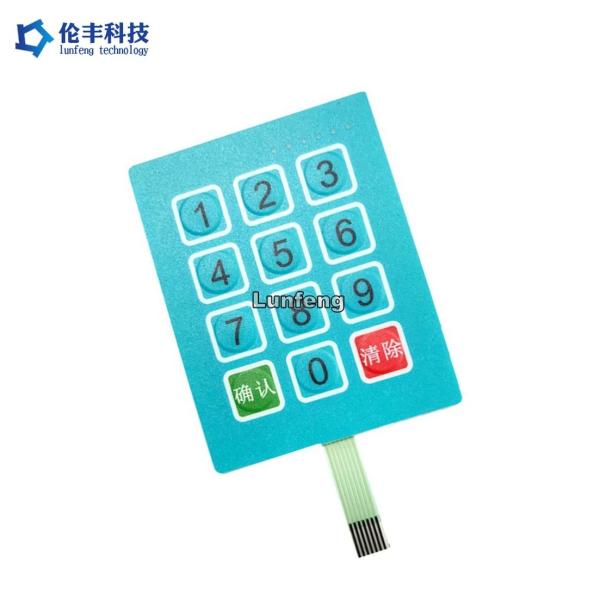

PET Polyester Flat Membrane Switch , Custom Tactile Membrane Keypad

Brand Name : Lunfeng

Model Number : LFZDX034

Certification : ISO9001:2015

Place of Origin : Shenzhen, China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 500000 Piece/Pieces per Month

Delivery Time : 7-25 working days, To be negotiated

Packaging Details : First put into a polybag, then paked into a carton. According to clients' special requirements.

Product name : Custom PET Polyester Flat Membrane Switch Tactile Keypad

ColorS : Pantone/ RAL color, blue, white, black, blue, red

Material : PET, Polyester(PET),

Rear adhesive : 3M468, 3M467

Feature : metal domes, matte surface, silver circuit

Connector : 2.54mm ZIF connector

Key : embossing keys, embossed button

Type : without Leds, without LCD window

Contact Now

Custom PET Polyester Flat Membrane Switch Tactile Keypad

Membrane switch has below main advantages

  • Small and portable. Generally a membrane switch is several or dozens grams, it is quite convenient to carry or disassemble.
  • Aesthetic appearance. It adopts advanced silk screen printing technology, with special design; We can provide any custom solution you need.
  • Sealing. To meet customer's unique needs of the program, we can design the membrane switch to be water- proof, grease proofing, dust-proof, and static-free...With unique technologies, the membrane switch can endure a high voltage.
  • Good conductivity. The circuitry is printed with carbon, silver, copper foil and so on, it can be freely folded, and the resistance can be limited according to customer's specification.
  • Low cost. Membrane switch is low price, some even costs only cents. Compare to other electronic components which have same function, it is exactly cheap price.
  • Long lifetime. The materials are with high isolation, thermal resistance, fold resistance and rebound resilience. Moreover, the graphic can not be damaged because of its second surface printing; The lifetime is usually above 3 years.


Our Advantage:

  • We Focus in membrane switch and related items.
  • Strong R&D capability
  • Stable in quality
  • Competitive price
  • Short Lead time for samples and Mass production
  • Whole solution design available


Applications:

  • home appliances and device
  • Security Protection systems with Cipher Code
  • Various industry control keypad panel
  • consumer electronics and 3C item
  • Thrapy medical system and device
  • Various automtic machine control keypad
  • Telecommunication Equipment
  • Medical Equipment
  • Industrial Equipment
  • Household Equipment
  • Remote Controller
  • Control system

Items Silver Printed Circuit Copper Etched FPC Circuit
Material PET (Polyester) Copper
Conductor Printed silver Copper
Contact Fingers Silver and Carbon Gold plated
Contact Buttons Pads Silver Gold plated
Life & Reliability normal good
Stability normal good
Resistance low Very low
Cost low high
Lead Time 2-3 days 7-10 days
Pitch

0.5mm (not suggested), 1.0mm,1.27mm, 2.54mm

0.5mm, 1.0mm,1.27mm, 2.54mm

1. Electrical Properties Membrane Switch
Electrical Level: 35V(DC), 100mA,1W
Contact Resistance: 10Ω~500 Ω
Insulation Resistance: 100MΩ/100V
Dielectrics Voltage-resistance: 250VRms(50~60Hz 1min)
Chattering Time: ≤ 5ms
Life Time: Flat type ≥ 5,000,000; Tactile type ≥ 1,000,000
Tail Folding: R>1,180
2. Mechanical Properties
Operating Force: Flat type 57~284g (2~10oz); Tactile type 170~397g(6~14oz)
Switch Stroke: Flat type 0.1~0.5mm; Tactile type 0.6~1.5mm
3. Environmental and Storage Conditions
Operation Temperature: -40°C ~ +80°C
Storage Temperature: -40°C ~ +80°C
Humidity: 40°C, 90%~95%, 240 hours


FAQ:

Q1: Are you a factory or trade company?
A : Lunfeng is membrane switch/ graphic overlay manufacturer/factory. We pecialize in memrbane switch for 26 years.

Q2 : Is my switch file safe if I send it to you for manufacturing?
A : We respect customer's design authority and will never manufacture membrane switch/ graphic overlay for someone else without
your permission. NDA is acceptable.

Q3 : Can you copy membrane switch/ graphic overlay samples without file?
A : Yes, we can clone membrane switch/ graphic overlay according to your samples.

Q4 : What payment do you accept ?
A : TT/ Western Union.

Q5 : What's your shipping way ?
A : 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT, EMS.
2. If you have your own forwarder, we can cooperate with them.

Q6 : How about the MOQ?
A : 1 pcs, but normally 5 pcs samples for memrbane switch, 10 pcs for membrane overlay.

Q7 : What's your main market?
A : Europe, USA, Brazil, Russia, Turkey, Iran, Austrialia, Singapore...
